14 ft Bookshelf (3 shelves, heavy load)
Inputs
Length4 ft
Depth10 in
Shelves3
Load50 lbs/shelf
Result
Total Brackets9
3 brackets per shelf (at 2.5 ft max span) x 3 shelves = 9 brackets.
Be the first to rate this calculator
No ratings yet
Shelf Bracket Calculator
Units
Total Brackets
9
Per Shelf
3
Spacing
24 in
Cost
$54
2-3 ft for 3/4 in lumber, 3-4 ft for solid hardwood or metal shelves
Total Brackets Needed
9
3 per shelf \u00D7 3 shelves
Bracket Layout
Actual Spacing
24 in
Bracket Depth
7 in
Screws Needed
36
Load/Bracket
17 lbs
Cost
Total Bracket Cost
$54
Find a Contractor Near You
Get free quotes from licensed contractors in your area
100% freeNo obligation2-minute match
We may earn a commission when you request quotes, at no extra cost to you.
Showing results for your area
Find a Contractor Near You
Get free quotes from licensed contractors in your area
100% freeNo obligation2-minute match
We may earn a commission when you request quotes, at no extra cost to you.
Showing results for your area
What You'll Need
LEOPO Shelf Brackets 12 inch, 1/5 inch Thick 6-Pack Heavy Duty Industrial Bracket for DIY Floating Shelf Support, Black Coated Wall Shelf Bracket 11.25” x 6” x 1.5”
$26.58
View on Amazon

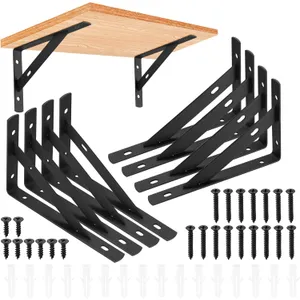

12 Pack L12 x H 8" Black Heavy Duty Shelf Brackets with Screws Metal Shelf Brackets Shelf Support Angle Brackets for Shelves L Brackets Heavy Duty Floating Shelf DIY
$35.95
View on Amazon
Goovilla Shelf Bracket, Heavy Duty Floating Shelf Brackets 6 inch Long, 6 Pack Brackets for Shelves, Black Coated Metal Wall Shelf Support Brackets with 1/5 Inch Thick and 160 lb. Load Capacity
$15.17
View on Amazon

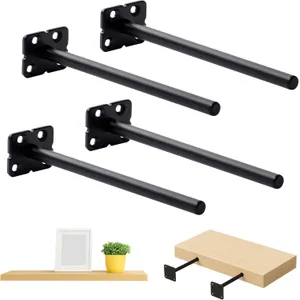

Starunder 6 Pack Floating Shelf Brackets,6 Inch Heavy Duty Metal Brackets
$14.38
View on AmazonLEOPO Shelf Brackets 12 inch, 1/5 inch Thick 6-Pack Heavy Duty Industrial Bracket for DIY Floating Shelf Support, Black Coated Wall Shelf Bracket 11.25” x 6” x 1.5”
$26.58
View on Amazon12 Pack L12 x H 8" Black Heavy Duty Shelf Brackets with Screws Metal Shelf Brackets Shelf Support Angle Brackets for Shelves L Brackets Heavy Duty Floating Shelf DIY
$35.95
View on AmazonGoovilla Shelf Bracket, Heavy Duty Floating Shelf Brackets 6 inch Long, 6 Pack Brackets for Shelves, Black Coated Metal Wall Shelf Support Brackets with 1/5 Inch Thick and 160 lb. Load Capacity
$15.17
View on AmazonStarunder 6 Pack Floating Shelf Brackets,6 Inch Heavy Duty Metal Brackets
$14.38
View on AmazonAs an Amazon Associate, we earn from qualifying purchases.
Price as of Jul 24, 2026. Product prices and availability are accurate as of the date indicated and are subject to change. Any price and availability information displayed on Amazon at the time of purchase will apply.
Related calculators
Closet Rod CalculatorHanging rod brackets and capacityFrench Cleat CalculatorWall-mount cleat systemsShelf Sag CalculatorCalculate shelf deflectionBlock Count CalculatorCalculate CMU cinder block quantity for wall projects. Enter wall dimensions, block size, and openings to estimate total blocks, mortar, and material cost.Framing CalculatorCalculate studs, plates, and headers needed for wall framing. Enter wall dimensions, spacing, and openings for a complete lumber list and cost estimate.Retaining Wall CalculatorCalculate retaining wall blocks, gravel, and drainage materials needed. Enter wall dimensions and block size for accurate material lists and cost estimates.
Example Calculations
26 ft Display Shelf (single, light load)
Inputs
Length6 ft
Depth8 in
Shelves1
Load15 lbs
Result
Total Brackets4
6 ft at 2.5 ft span = 4 brackets, spaced 24 in apart.
Frequently Asked Questions
QHow many brackets does a shelf need?
A shelf needs at minimum 2 brackets (one near each end) plus additional brackets every 24-32 inches between them. A 4 ft shelf typically needs 3 brackets, a 6 ft shelf needs 4, and an 8 ft shelf needs 5.
- Up to 24 in shelf: 2 brackets sufficient for light loads
- 24-48 in shelf: 2-3 brackets depending on load
- 48-72 in shelf: 3-4 brackets, especially for books or heavy items
- 72-96 in shelf: 4-5 brackets to prevent sagging in the middle
QWhat is the maximum span between shelf brackets?
For 3/4 in particleboard or MDF, max span is 24 in. For 3/4 in plywood, max span is 32 in. Solid hardwood can span up to 36-48 in. Reduce spans for heavy loads like books.
- Particleboard/MDF (3/4 in): 24 in max span, 16-20 in for heavy loads
- Plywood (3/4 in): 32 in max span, 24 in for heavy loads
- Solid pine/poplar: 36 in max span, 30 in for heavy loads
- Solid hardwood (oak/maple): 48 in max span, 36 in for heavy loads
QHow deep should shelf brackets be?
Shelf brackets should be about 2/3 to 3/4 of the shelf depth for adequate support. For a 10 in deep shelf, use 7-8 in brackets. Shorter brackets reduce support and increase sag risk.
- Minimum bracket depth: 2/3 of shelf depth
- Optimal bracket depth: 3/4 of shelf depth for heavy loads
- 8 in shelf: use 5-6 in brackets minimum
- 12 in shelf: use 8-10 in brackets minimum
QHow much weight can a shelf bracket hold?
A single metal L-bracket rated for 75 lbs supports 25-40 lbs of actual shelf load (derate by 50% for safety). Heavy-duty brackets rated at 150-200 lbs support 50-80 lbs each. Always anchor into studs.
- Standard L-bracket: 25-40 lbs per bracket into studs
- Heavy-duty decorative bracket: 50-80 lbs per bracket into studs
- Floating shelf brackets (concealed): 30-50 lbs per bracket
- Into drywall with anchors: reduce all ratings by 50%
